Our IDL series of food-safe and cold room swing doors come standard with the TIP6060 composite swing door hinge, enabling the door leaves to be fixed in a 90° open position. Both single-leaf and double-leaf versions feature anodized aluminium edges surrounded by rubber seals. The IglooDoors® IDL swing doors are recommended for openings ranging from 700 to 2400 mm in width, making them ideal for high-traffic industrial, logistics, cold storage, processing, or kitchen environments. The standard door panel surface is available in RAL9002 white powder-coated finish, with an optional stainless steel version also available.

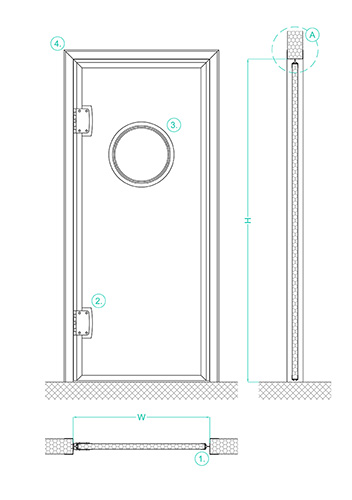

IDL40
single leaf swinging door
Recommended for positive temperature ranges
(0 / +25 C)
Our single-leaf food-safe swinging door model, the IglooDoors® IDL40, is a perfect choice for cool room, processing, kitchen, and pastry environments within a temperature range of 0 to +25 degrees Celsius. Swing doors are primarily recommended for areas with high traffic volume where only smaller-sized products need to be moved.
Leaf thickness: 40 mm
Leaf structure: Single-leaf swinging door with rubber-sealed anodized aluminium edges

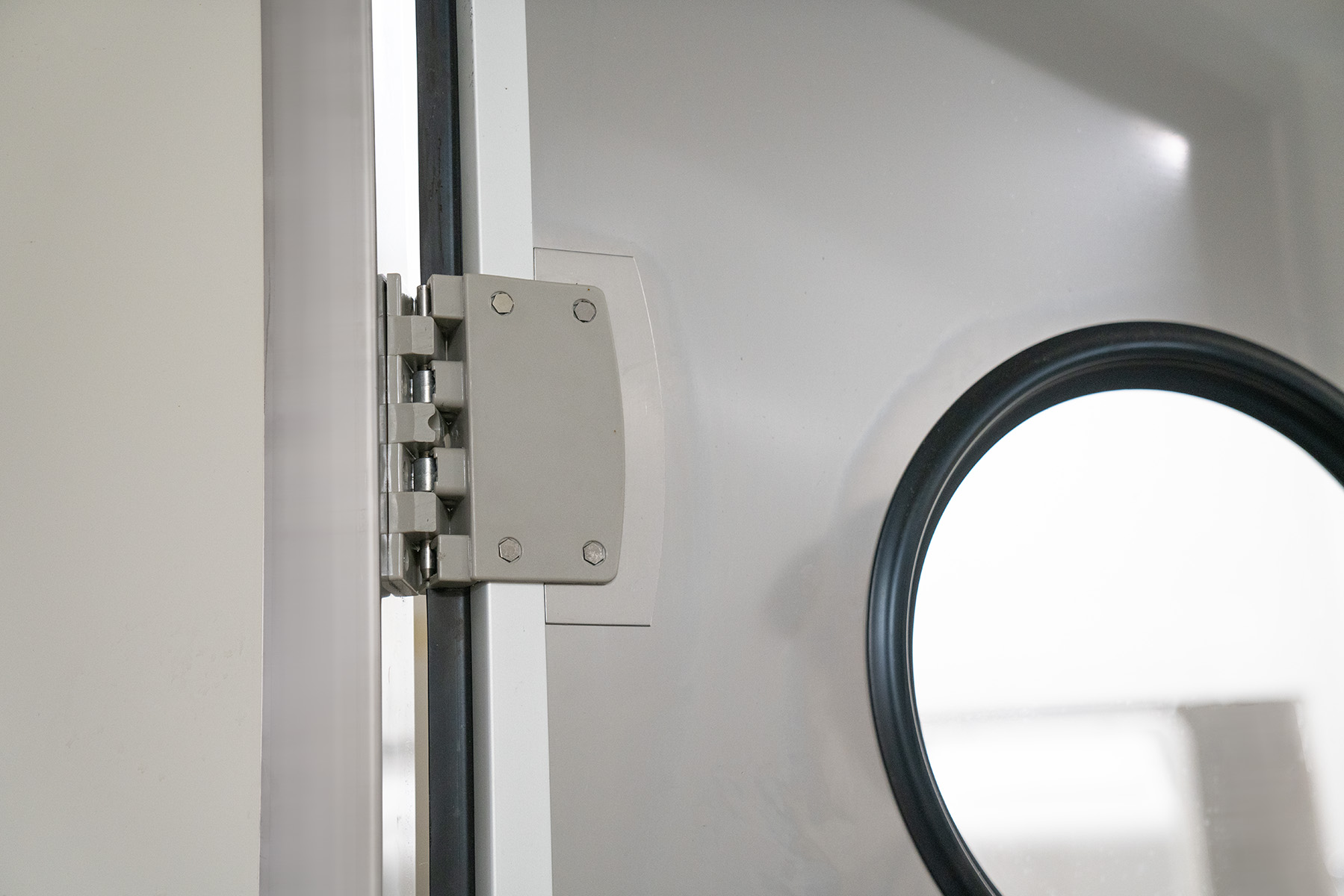

Swinging door hinge: TIP6060 composite swinging door hinge, fixable at 90° open position
Standard leaf surface: Galvanized steel RAL9002 arctic white powder coated

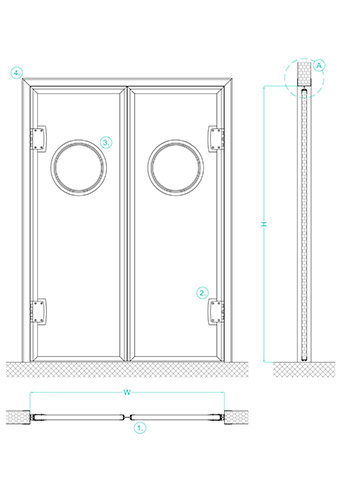

IDL40-2
double leaf swinging door
Recommended for positive temperature ranges
(0 / +25 C)
Our double-leaf food-safe swinging door model, the IglooDoors® IDL40-2, is perfect for any cool room, processing, kitchen, and pastry environments operating between 0 and +25 degrees Celsius. The use of double-leaf swinging doors is particularly recommended for areas with heavy traffic in cool or refrigerated spaces, and when there is a need to move large-sized products.
Leaf thickness: 40 mm
Leaf structure: Double-leaf swinging door with rubber-sealed anodized aluminium edges
Swinging door hinge: TIP6060 composite swinging door hinge, fixable at 90° open position
Standard leaf surface: Galvanized steel RAL9002 arctic white powder coated
Available sizes
Our single-leaf IDL industrial swinging doors are designed to accommodate openings up to 1200 mm in width and 2100 mm in height. For larger entrances, our double-leaf models offer widths ranging from 1300 to 2400 mm and heights between 1900 to 2400 mm. We are dedicated to custom manufacturing doors to fit any dimensions within these ranges.
Common sizes
- 700×1900
- 800×1900
- 900×2000
- 1000×2100
- 1200×2100
- 1300×1900
- 1500×1900
- 1800×2000
- 2000×2100
- 2400×2400
Options
- 350 mm polycarbonate inspection window
- Fittings suitable for both panel and built-in structures
- Coated stainless steel sheet door cladding
- HPL and DECO coating
- Recycled PUR foam insulation for a more robust door leaf design
- External and internal stainless steel protective plates, 300 mm in height
- Bumpers on door leaves
Gallery
-

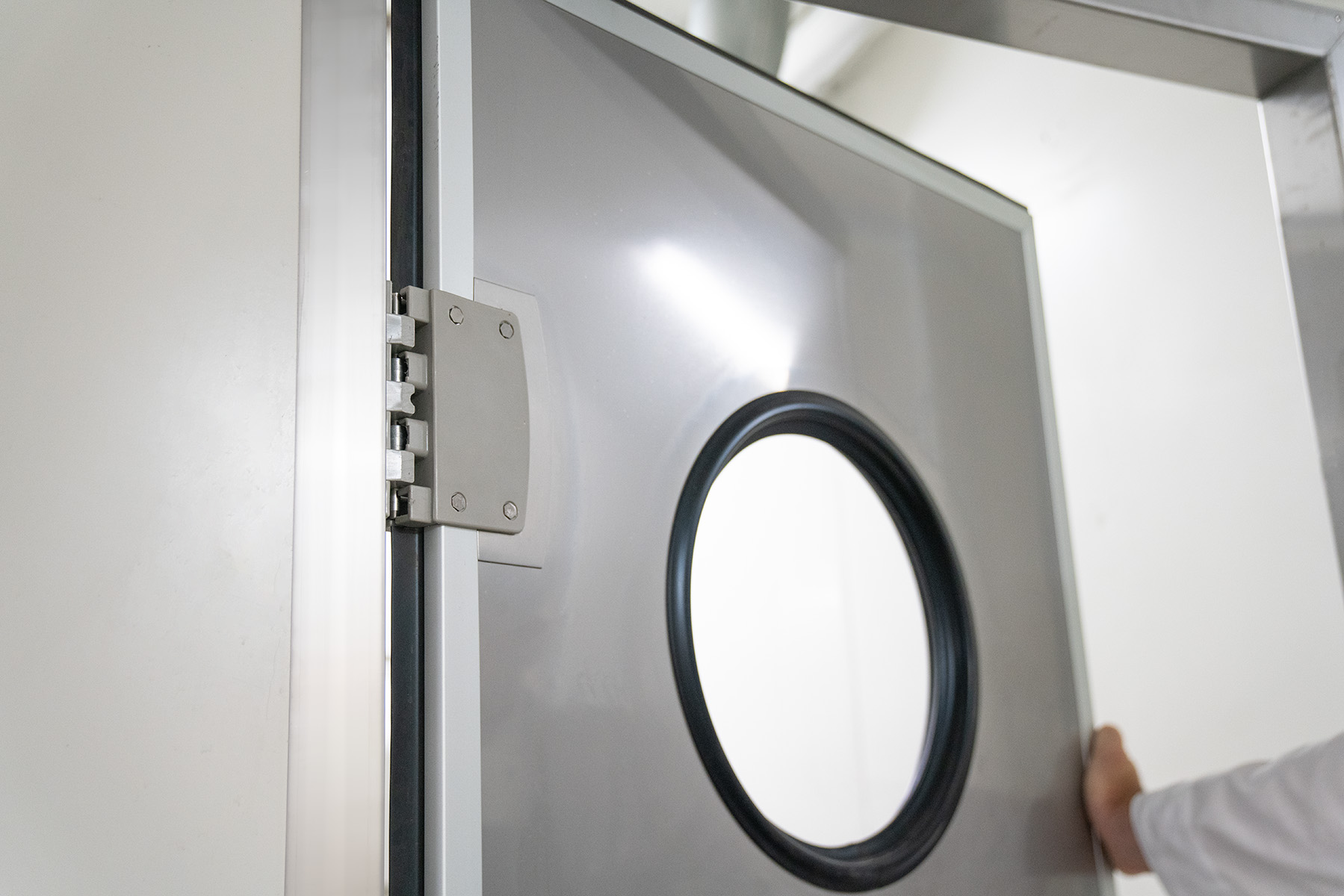

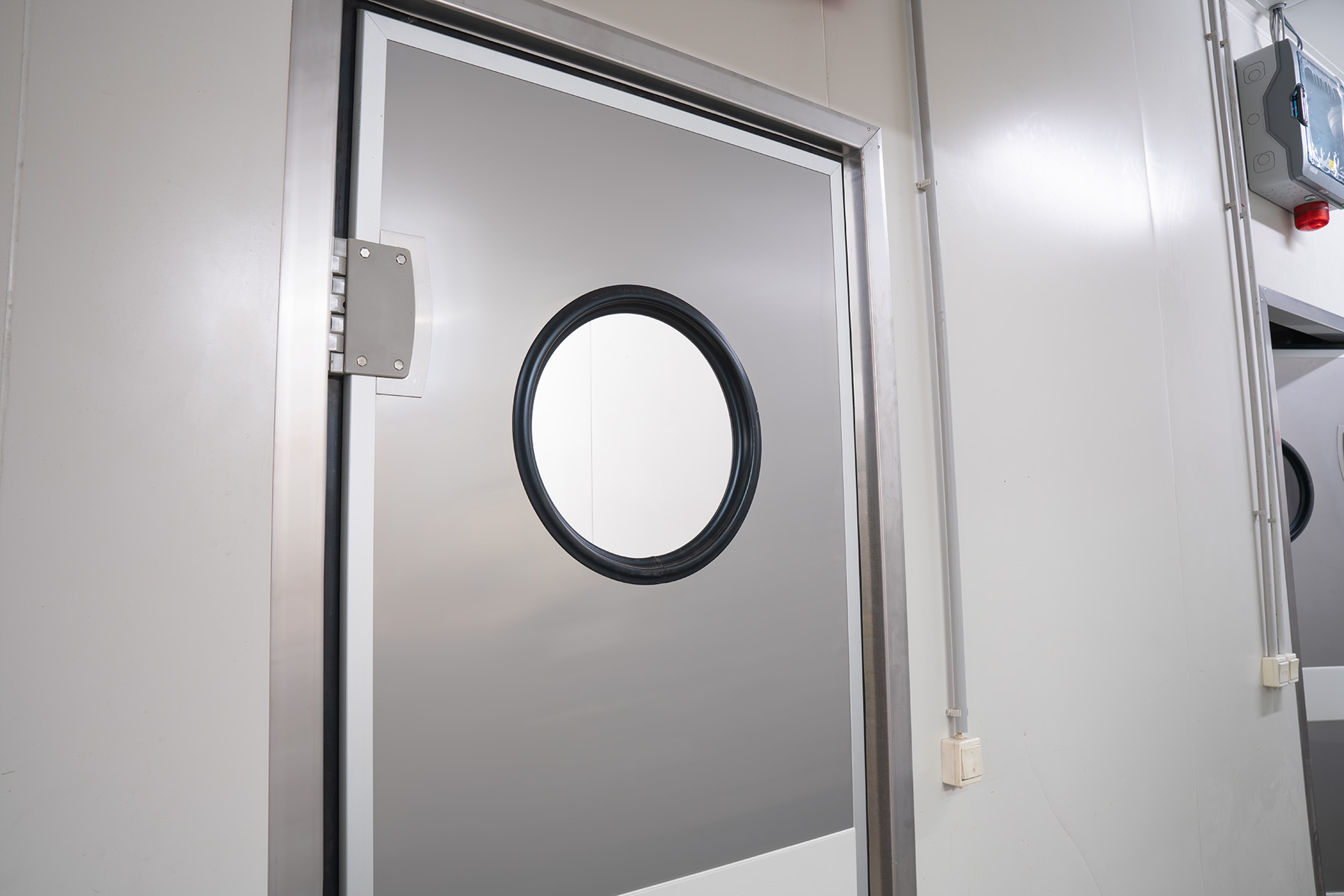

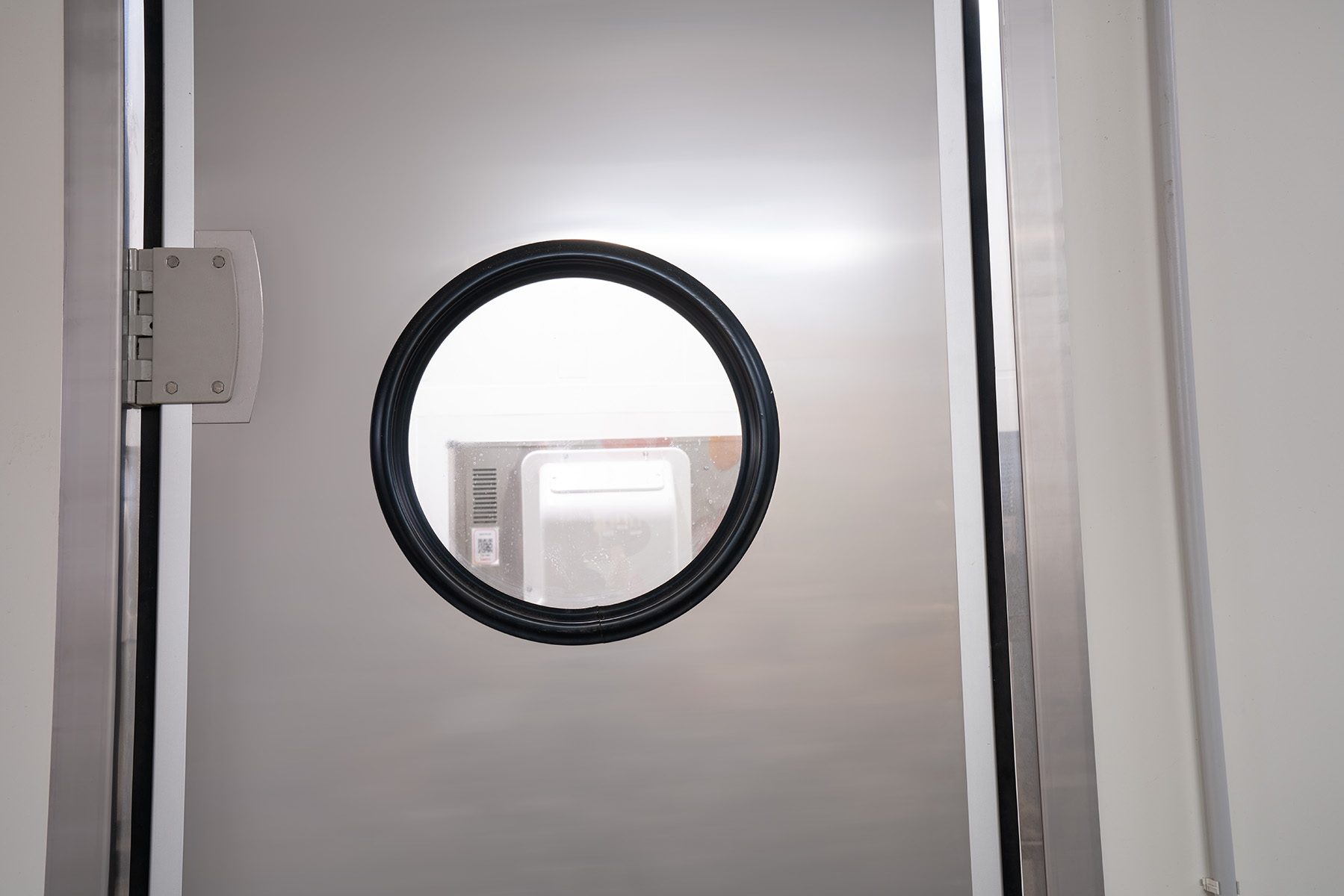

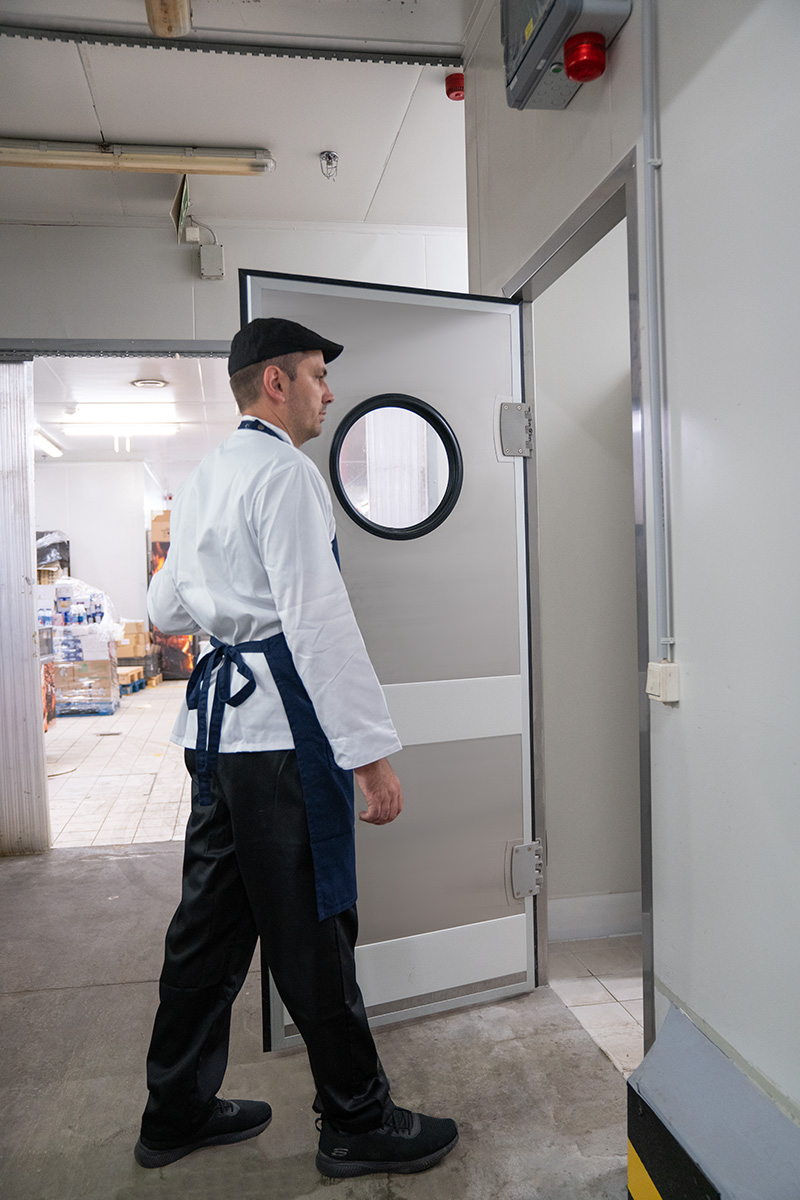

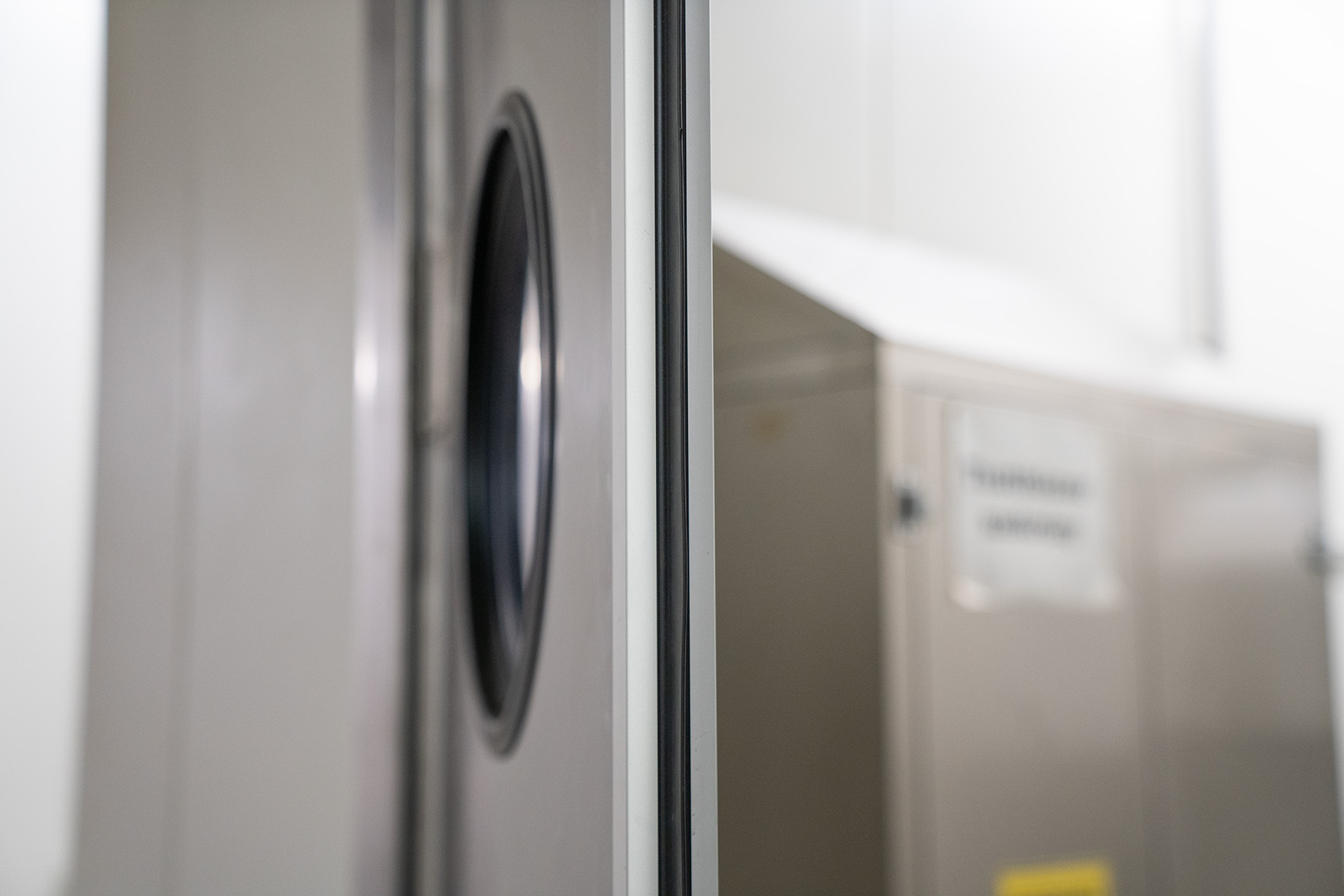

hutoepito-hutokamra-lengoajto
-
